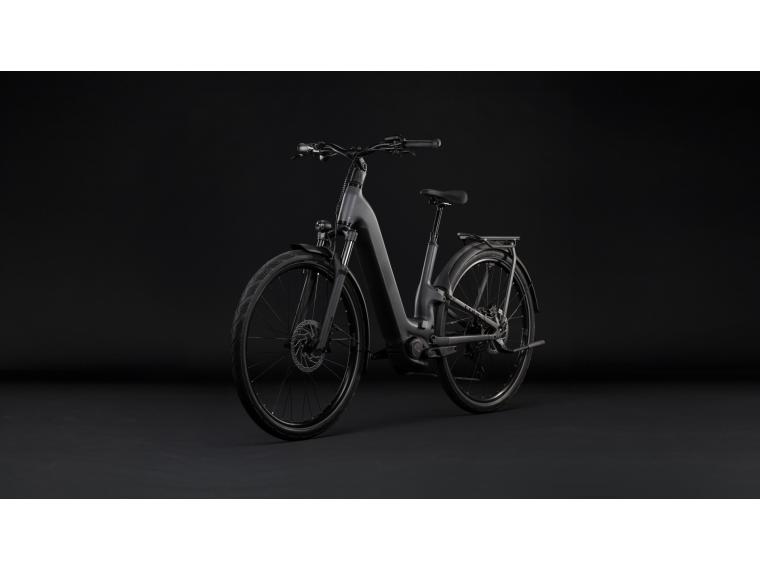

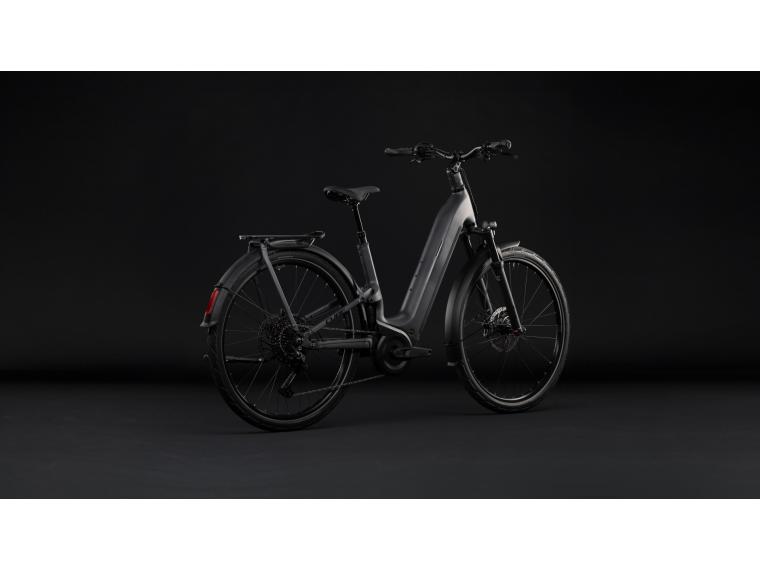

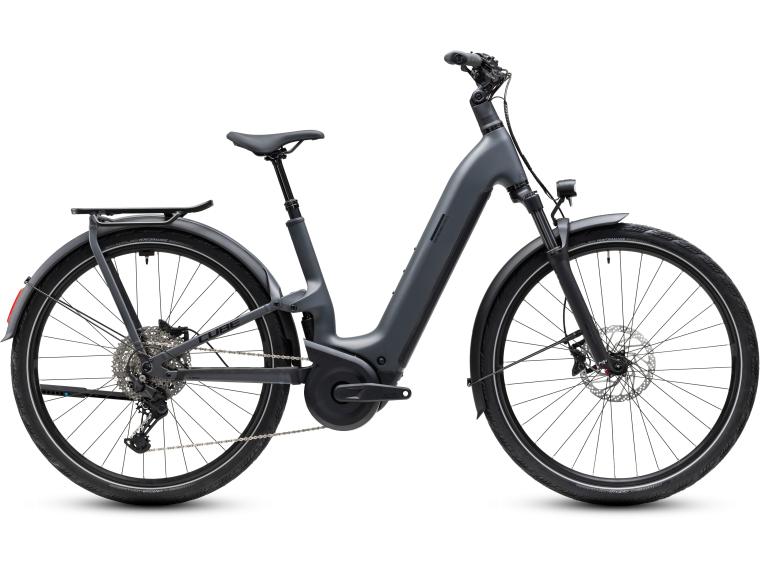

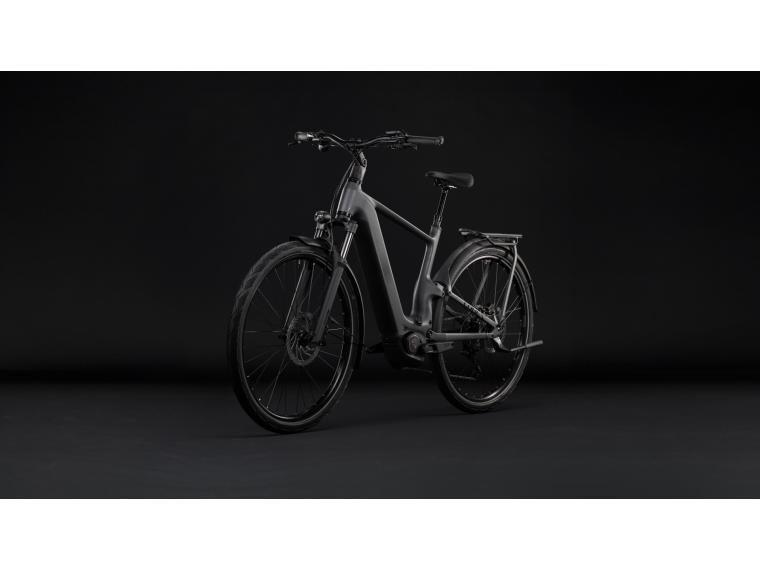

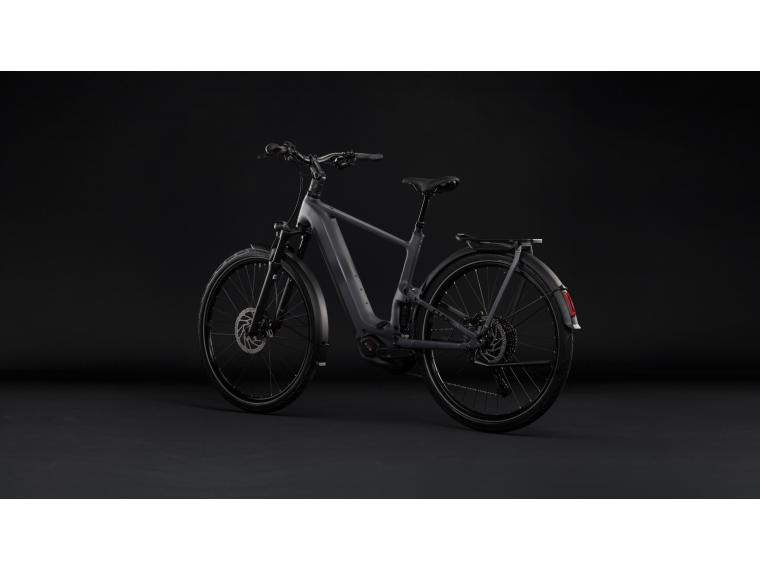

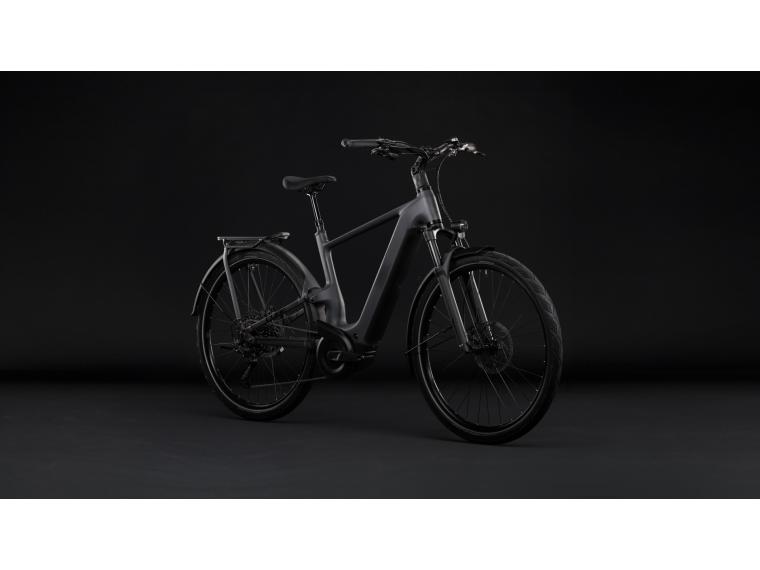

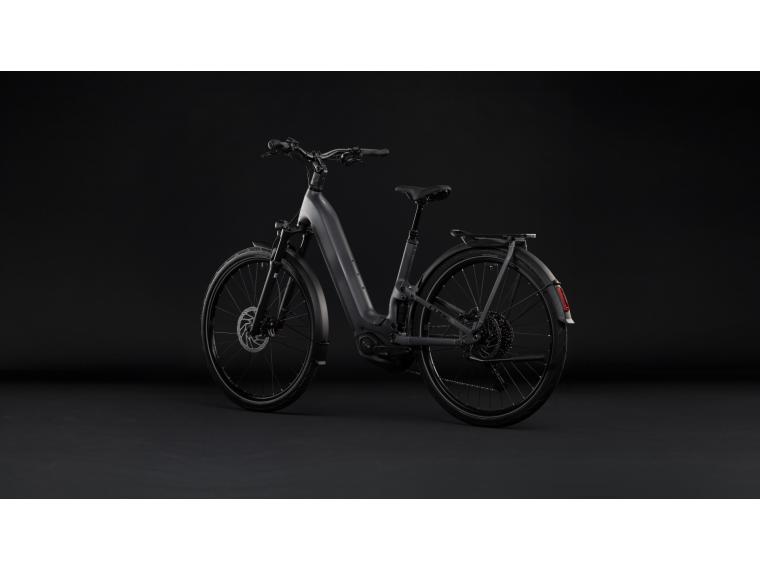

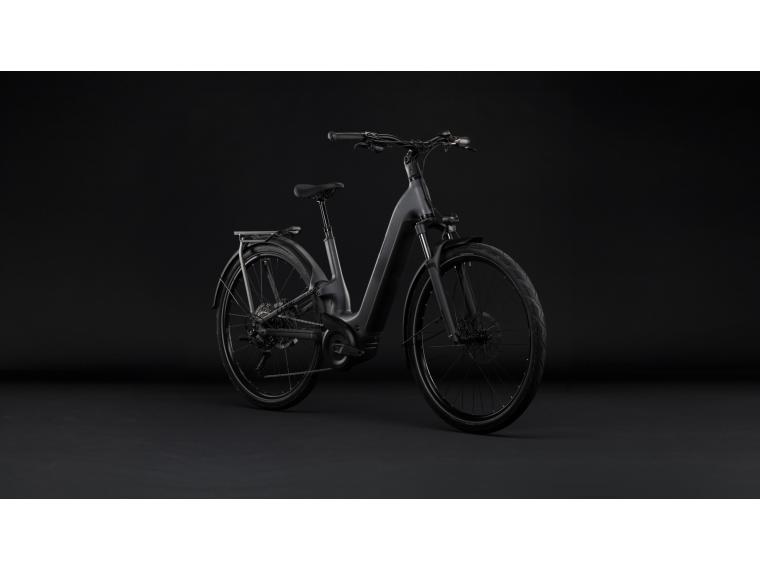

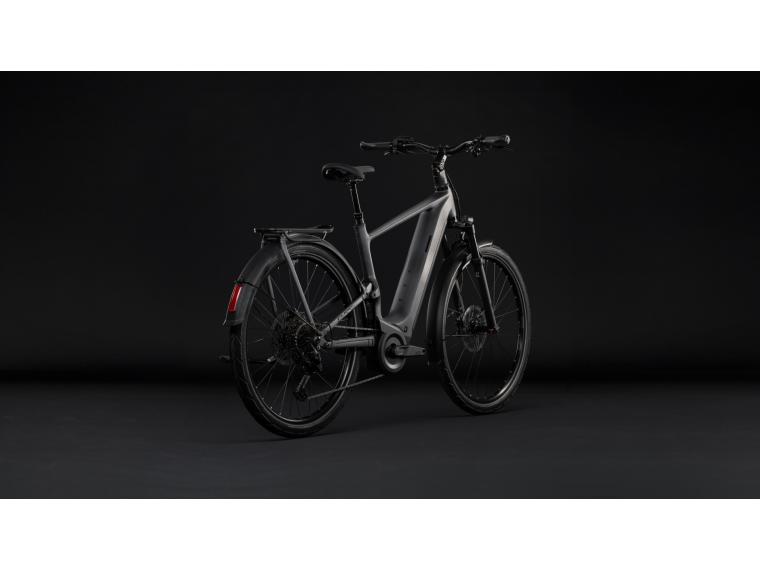

Vélo Électrique Hybride Cube Kathmandu Hybrid One11 HPC Pro
4.399,-
Frais de livraison 29,95
- Commandé maintenant, livré le jeudi
Points forts & points faibles
Points forts & points faibles
- The Bosch Performance Line CX motor with up to 120 Nm of torque is powered by an 800 Wh PowerTube battery, offering plenty of power and a fantastic range for long rides.
- The bike has full suspension at the front (SR Suntour XCR34X-Air) and rear (SR Suntour EdgeX 2CR), both 100 mm; unlike the hardtail models in the Touring and Kathmandu ranges, it also absorbs shocks at the rear.
- Thanks to the C:62 Carbon monocoque front frame and aluminium rear triangle, the bike is stiff and light, despite the full suspension.
- The dropper post with remote control and the adjustable stem allows you to easily change your riding position and saddle height, even while cycling.
- At 120 kg, maximum rider weight is quite high, compared with 110 kg on most other Touring and Kathmandu models.
- Only an Abus battery lock is included, no wheel lock. If you want to be able to lock your bike properly on the street, you will need to order a (chain) lock along with your new bike.
Caractéristiques techniques
Caractéristiques techniques
| Marque | Cube | |
| Quelle position assise préférez-vous ? | Légèrement inclinée | |
| Type de moteur | Bosch Performance Line CX (120Nm) | |
| Transmission | Chaîne avec dérailleur | |
| Système de freinage | Frein à disque hydraulique | |
| Nombre de vitesses | 12 vitesses | |
| Poids | 27 kg | |
| Matériau du cadre | Carbone | |
| Système de transmission | Transmission à dérailleur |
This is the entry-level model in the full-suspension Kathmandu Hybrid ONE11 range: It features the same carbon front-frame construction and the same 100 mm front and rear suspension as the top-of-the-range model, but with a slightly more basic set of components. This way, it gives you the comfort of full suspension without having to opt for the most expensive model.
Bosch Performance Line CX motor (BDU38) up to 120 Nm
This motor works in conjunction with the Bosch Purion 200 display, a compact device that shows you all the basic data (speed, assistance mode, range) directly on your handlebars.

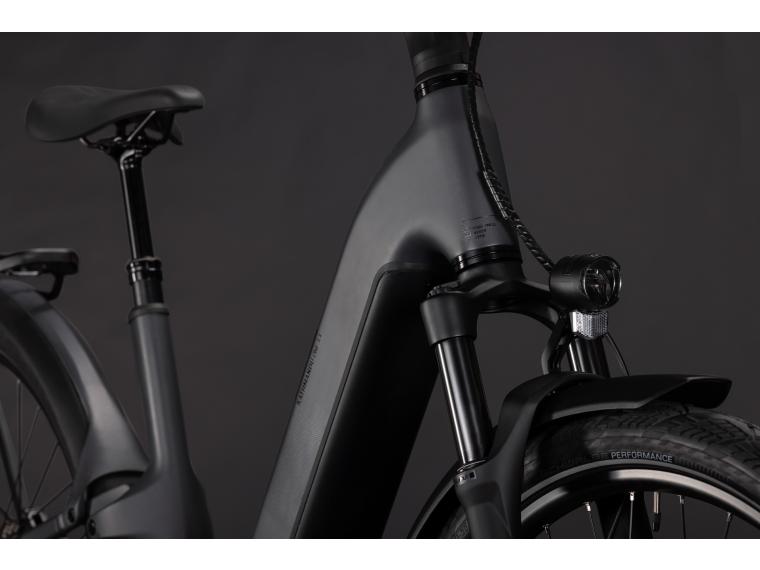

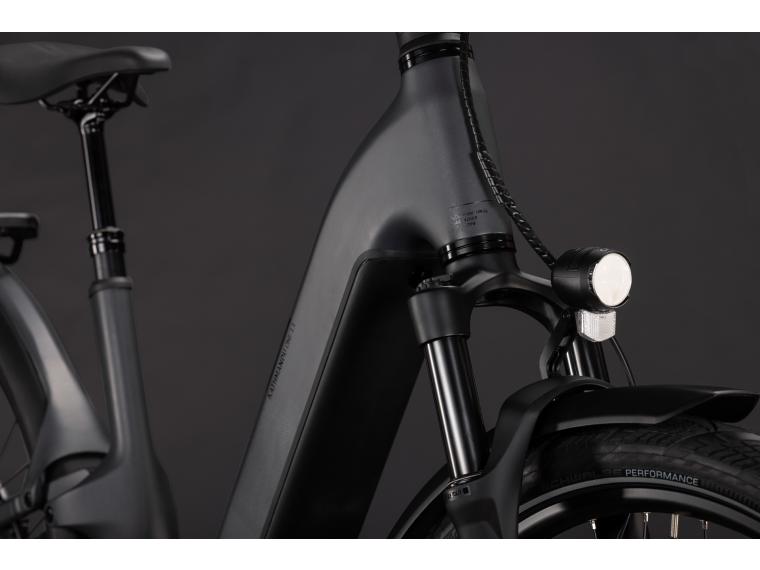

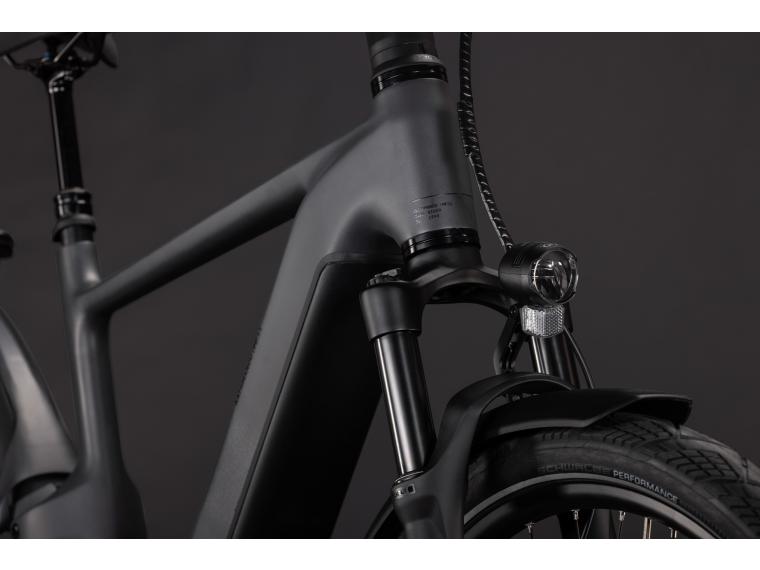

Full suspension

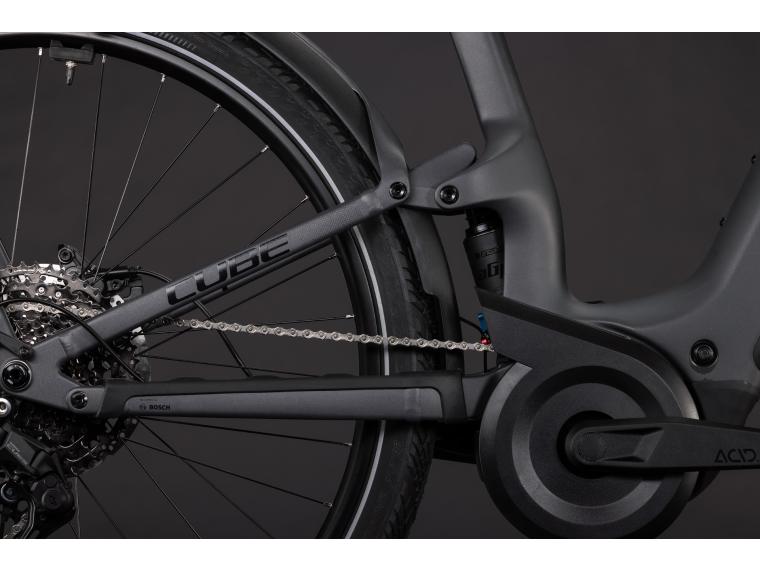

The SR Suntour XCR34X-Air fork and matching EdgeX 2CR rear shock work in tandem with Cube’s FSP 4-Link suspension setup. In practice, this delivers smooth suspension that absorbs bumps without losing pedalling energy, ensuring you stay in control even on unpaved terrain or bumpy cycle paths.

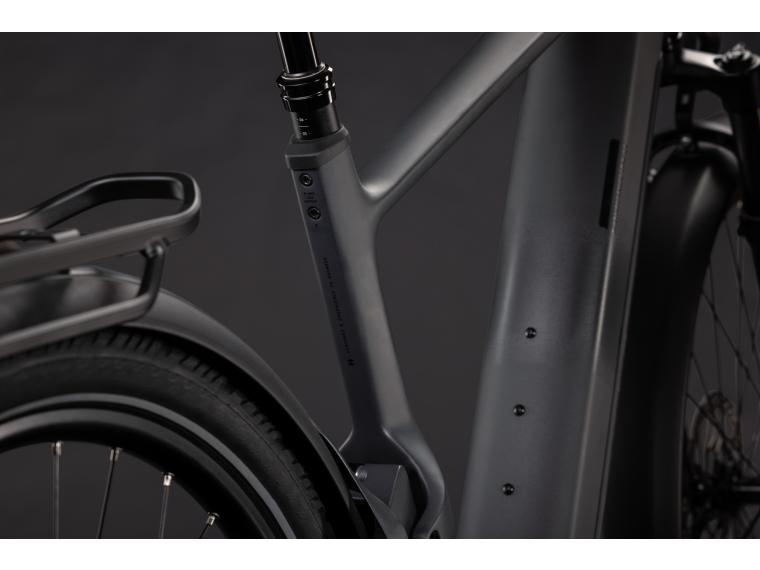

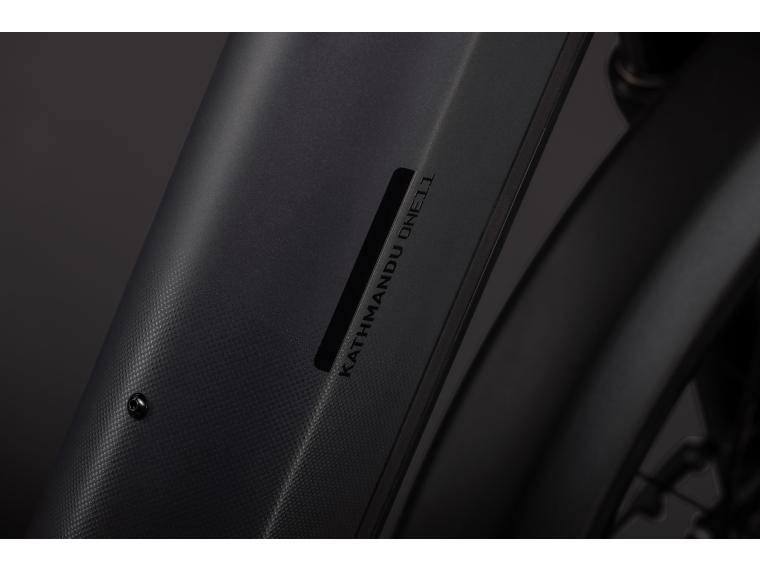

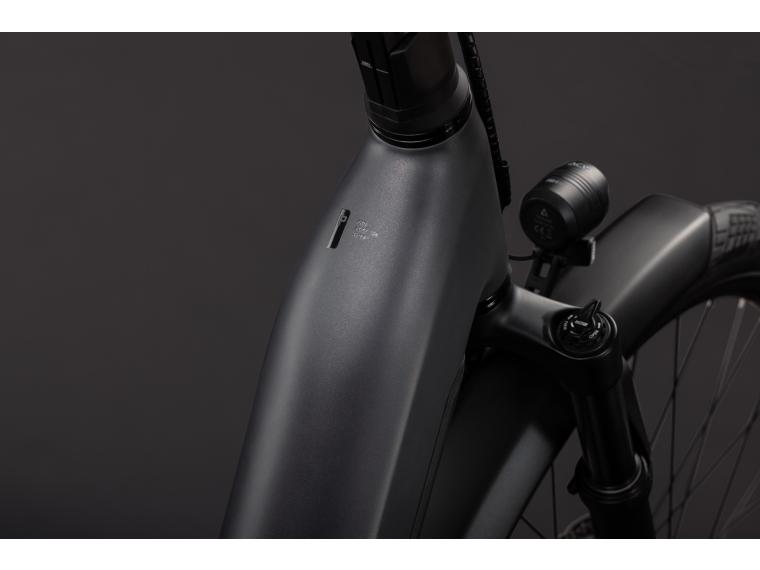

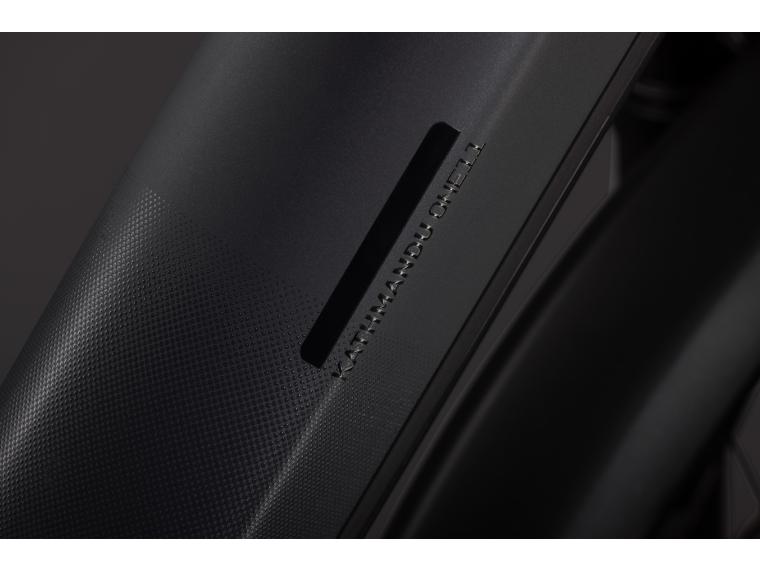

C:62 Monocoque carbon front frame
The front frame is constructed from carbon using Advanced Twin Mold Technology, and is combined with an aluminium rear triangle. This saves weight without compromising stiffness, even with a full-suspension system on board.
This motor works in conjunction with the Bosch Purion 200 display, a compact device that shows you all the basic data (speed, assistance mode, range) directly on your handlebars.

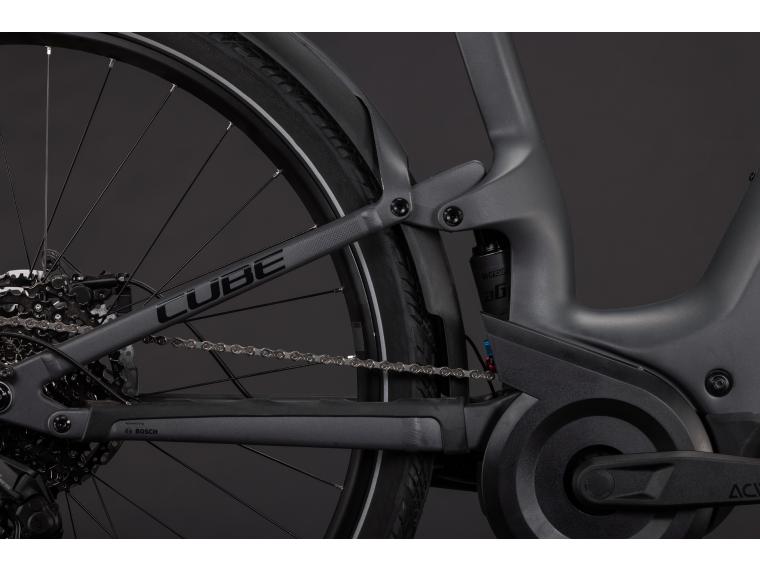

Full suspension
The SR Suntour XCR34X-Air fork and matching EdgeX 2CR rear shock work in tandem with Cube’s FSP 4-Link suspension setup. In practice, this delivers smooth suspension that absorbs bumps without losing pedalling energy, ensuring you stay in control even on unpaved terrain or bumpy cycle paths.
C:62 Monocoque carbon front frame
The front frame is constructed from carbon using Advanced Twin Mold Technology, and is combined with an aluminium rear triangle. This saves weight without compromising stiffness, even with a full-suspension system on board.

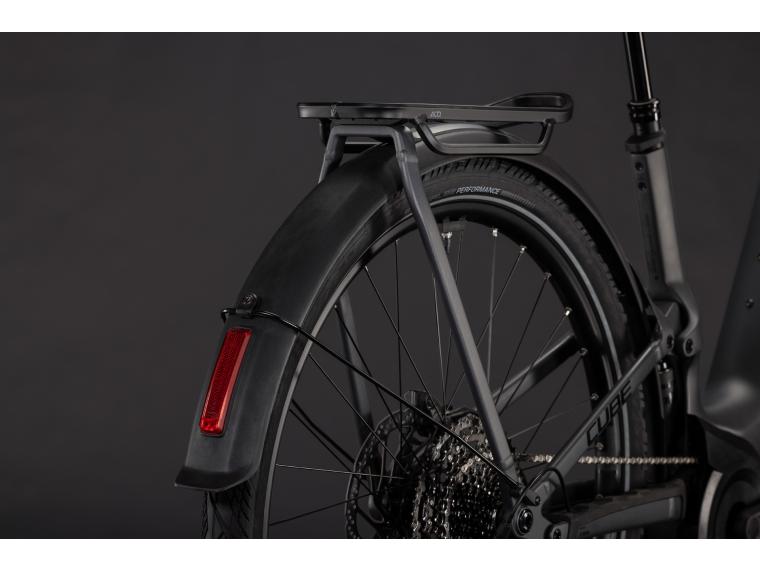

- The ACID Integrated Carrier 3.0 luggage rack is compatible with the CUBE adapter system and with all standard pannier bags.
Not compatible with:
- The dropper post uses internal cable routing via the handlebar lever. If you replace it with a fixed seatpost of the same diameter (31.6 mm), that adjustment function will naturally no longer work.
- A child seat that clamps round the seat post is not compatible because of the dropper post and the integrated seat clamp. If in doubt, choose a child seat that attaches to the luggage rack.
Not sure? Here’s how to check:
Pop into one of our Superstores in Arnhem, Den Bosch, Rotterdam or Utrecht, and we will check with you whether your accessory, child seat or spare battery actually fits.
Included as standard:
Not included as standard, but useful:
- Cube Kathmandu Hybrid One11 HPC Pro electric bike, fully assembled
- Bosch PowerTube 800 battery and Bosch 2A charger
- Bosch Purion 200 with integrated display
- ACID PP Trekking pedals
- Luggage rack (ACID Integrated Carrier 3.0, CUBE-adapter compatible) and mudguards
- Front light (ACID Front Light PRO-E 60) and rear light (ACID Mudguard Rear Light PRO-E)
- Kickstand (ACID FM Pure) and bike bell
- Abus battery lock (locks the battery into the frame)
Not included as standard, but useful:
- Chain lock for added security; this model only comes with a battery lock. Check out our range of chain locks so you can park the bike away from home.
- Single or double panniers to attach to the rear luggage rack (compatible with the CUBE adapter system).
- A suitable e-bike helmet.
Our workshop mechanics will assemble your new Cube Kathmandu Hybrid One11 HPC Pro e-bike, adjust the brakes and gears, and check the fork and shock settings so that you receive it ready to ride.
Are you unsure about the settings for your Bosch Purion 200 display or how to operate the dropper post? Have a look in the User Manual supplied or ask our expert staff at one of the Mantel Superstores - we will be happy to provide assistance.
Are you unsure about the settings for your Bosch Purion 200 display or how to operate the dropper post? Have a look in the User Manual supplied or ask our expert staff at one of the Mantel Superstores - we will be happy to provide assistance.
- Charge the battery before your first ride and, if you are putting the bike away for a while, try to keep it at around 50%, which is best for its lifespan.
- Check tyre pressure regularly; the correct pressure is printed on the sidewalls of the Schwalbe Marathon Efficiency tyres.
- Have the fork and shock serviced annually to ensure the suspension continues to work smoothly.
- Consider ordering an additional chain lock along with your new bike. The included battery lock only secures the battery but will not prevent theft of the bike itself.
Does the Cube Kathmandu Hybrid ONE11 HPC Pro e-bike come with a lock?
This Kathmandu Hybrid ONE11 HPC Pro electric bike only comes with an Abus battery lock, which secures the battery to the frame. A wheel lock is not included. If you want to be able to lock the bike when you are away from home, take a look at our range of chain locks.
Does the Cube Kathmandu Hybrid ONE11 HPC Pro e-bike have front and rear suspension?
Yes, the Kathmandu Hybrid ONE11 HPC Pro has an SR Suntour XCR34X-Air front fork and an SR Suntour EdgeX 2CR rear shock, both with 100 mm of suspension travel. This sets it apart from most other Kathmandu and Touring models, which are hardtails (have no rear suspension).
What is the difference between the Cube Kathmandu Hybrid ONE11 HPC Pro and the Cube Kathmandu Hybrid Pro e-bikes?
The main difference is the suspension: While the current Kathmandu Hybrid ONE11 HPC Pro has a full-suspension carbon frame with front and rear suspension, the Kathmandu Hybrid Pro has a hardtail frame with front suspension only. The ONE11 HPC Pro also features a dropper post and a higher maximum rider weight (120 kg versus 110 kg). Are you mainly looking for on- as well as off-road comfort? Choose the ONE11 HPC Pro. Are you looking for a lighter, simpler Kathmandu model? Choose the Pro.
Can I replace the cassette on the Cube Kathmandu Hybrid ONE11 HPC Pro e-bike with one with a different gear range?
Not just with any standard cassette. The Cube Kathmandu Hybrid ONE11 HPC Pro uses a Shimano Cues CS-LG400 cassette (11-50T), which is part of Shimano’s Linkglide system. This works with its own chain and shifter and is not interchangeable with a standard Hyperglide cassette from a different range.
What is the maximum weight the Cube Kathmandu Hybrid ONE11 HPC Pro e-bike can carry?
The Kathmandu Hybrid ONE11 HPC Pro has a maximum rider weight of 120 kg. If you include luggage and accessories, the total system weight (bike + rider + load) may be up to 150 kg.
Can I test ride the Cube Kathmandu Hybrid ONE11 HPC Pro e-bike?
Absolutely! You are welcome to visit our Superstores in Arnhem, Den Bosch, Rotterdam and Utrecht, and test the Kathmandu Hybrid One11 HPC Pro on the large indoor test tracks there. Before your visit, do check stock availability on this page to make sure your preferred frame size (or sizes) is available at the store of your choice.
Posez une question sur ce produit
Tester en magasin
Disponible directement en magasin ou commandez en ligne.
Nouvelle Collection Cube 2027 : L'embarras du choix !
En lire plusFréquemment achetés ensemble
Fréquemment achetés ensemble
Produits similaires
Produits similaires
|
|
|
|
|
| Cube Kathmandu Hybrid One11 HPC Pro | Cube Kathmandu Hybrid Pro | Cube Kathmandu Hybrid One | KTM Macina Style 830 | |
| Taille de cadre | 46 cm / 50 cm / 54 cm / 58 cm / 62 cm / 1.65m - 1.70m | 46 cm / 50 cm / 54 cm / 58 cm / 62 cm / 1.65m - 1.70m | 46 cm / 50 cm / 54 cm / 58 cm / 62 cm / 1.65m - 1.70m | 43 cm / 46 cm / 51 cm / 56 cm / 1.59m - 1.64m |
| Modèle de cadre | Femme / Enjambement bas / Homme | Femme / Enjambement bas / Homme / Unisex | Femme / Enjambement bas / Homme | Femme / Enjambement bas |
| Quelle position assise préférez-vous ? | Légèrement inclinée | Légèrement inclinée | Légèrement inclinée | Droite / Légèrement inclinée |
| Type de moteur | Bosch Performance Line CX (120Nm) | Bosch Performance Line CX (120Nm) | Bosch Performance Line CX (120Nm) | Bosch Performance Line CX GEN5 (85Nm) |
| Transmission | Chaîne avec dérailleur | Chaîne avec dérailleur | Chaîne avec dérailleur | Chaîne avec dérailleur |
| Système de freinage | Frein à disque hydraulique | Frein à disque hydraulique | Frein à disque hydraulique | Frein à disque hydraulique |
| 4.399,- | 3.599,- | 3.199,- | 3.499,- | |
| Ce produit | Voir le produit | Voir le produit | Voir le produit |
Toutes les caractéristiques techniques
Général
Marque
Cube
Quelle position assise préférez-vous ?
Légèrement inclinée
Type de moteur
Bosch Performance Line CX (120Nm)
Transmission
Chaîne avec dérailleur
Nombre de vitesses
12 vitesses
Poids
27 kg
Matériau du cadre
Carbone
Convient le mieux pour (terrain)
Montagne / Terrain vallonné
Garantie cadre
3 ans
Limite de poids
150 kg , max rider weight 120 kg
Couleur
Slabgrey´n´Black
Moteur et Batterie
Marque du moteur
Bosch
Position du moteur
Moteur dans le boîtier de pédalier
Système Bosch Smart
Oui
Couple
120Nm
Niveaux d'assistance
4 niveaux
Position de la batterie
Batterie dans le cadre
Batterie amovible
La batterie est amovible
Capacité totale de la batterie
800 Wh
Rayon d'action réaliste
130 km - 140 km
Rayon d'action
Jusqu'à 210 km
Assistance maximale
400%
Type de capteur
Capteur de rotation / Capteur de vitesse / Capteur de puissance de pédalage
Chargeur
Bosch Compact Charger (2A)
Affichage
Type d'affichage
Bosch Purion 200
Type d'écran
Écran couleur
Position de l'affichage
Côté
Niveau de charge de la batterie
Oui
Rayon d'action actuel
Oui
Bouton marche/arrêt de l'éclairage
Oui
Affichage de la vitesse
Oui
Vitesse Moyenne
Oui
Vitesse Maximale
Oui
Nombre total de kilomètres parcourus
Oui
Distance du trajet
Oui
Temps de trajet
Oui
Affichage de l'heure
Oui
Écran amovible
Non
Contrôle de guidon
Oui
Assistance à la marche
Oui
Power Boost
Non
Connexion USB
Pour des raisons de service uniquement
Connectivité Bluetooth
Oui
Transmission et freinage
Système de freinage
Frein à disque hydraulique
Système de transmission
Transmission à dérailleur
Pièces de transmission
Shimano Cues
Dérailleur arrière
Shimano Cues RD-U6000-GS, 11-Speed
Cassette
11-50
Pièces de freinage
Shimano BR-MT420
Sécurité
Antivol
Exclusivement équipé d'un antivol de batterie
Éclairage avant
Batterie VAE
Éclairage arrière
Batterie VAE
Verrouillage de guidon
Non
Confort
Fourche
Suspendue
Tige de selle
Télescopique
Potence
Réglable
Largeur du pneu
55 mm
Garde-chaîne
Semi-ouvert
Système de montage pour porte-bagages
ACID Rilink
Dans la boîte
Pédales
Oui
