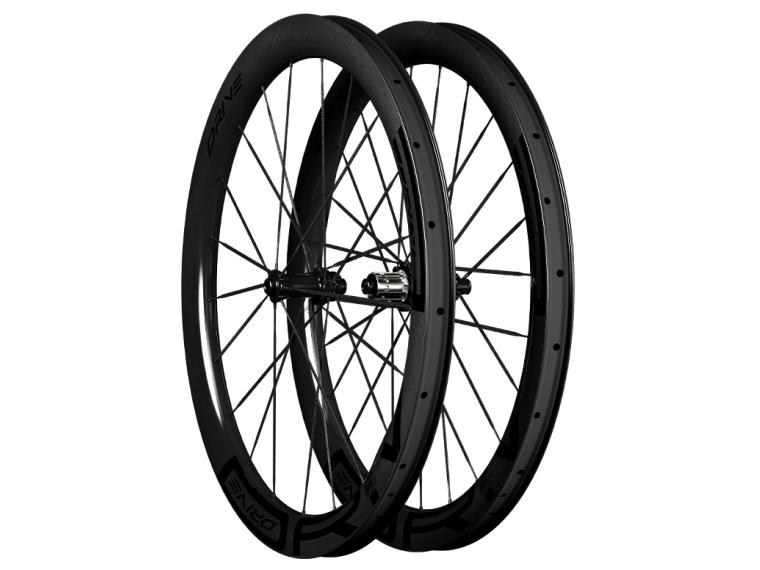

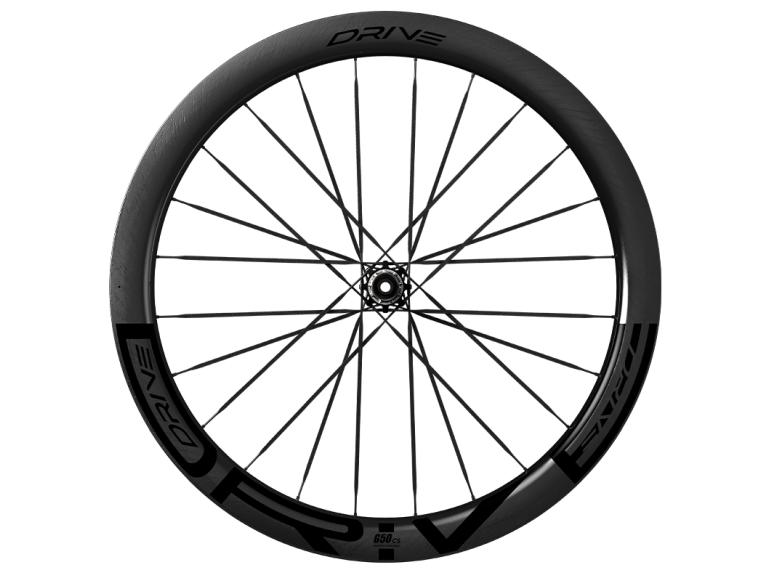

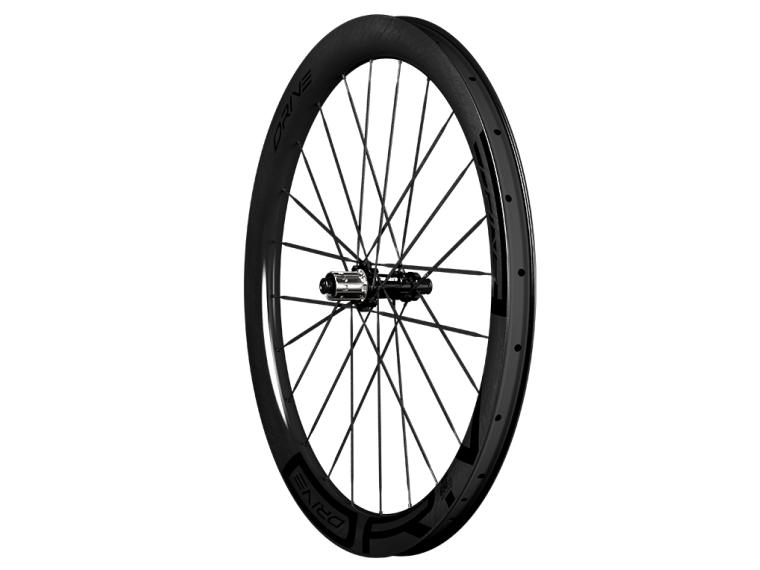

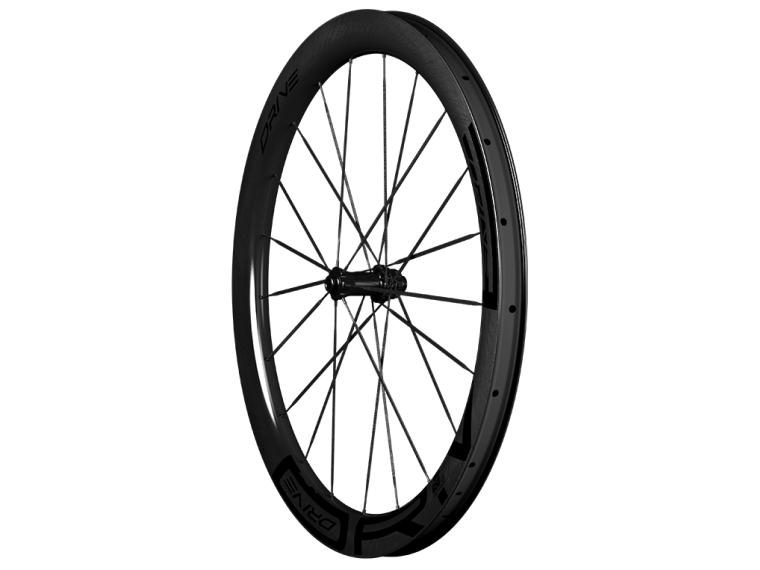

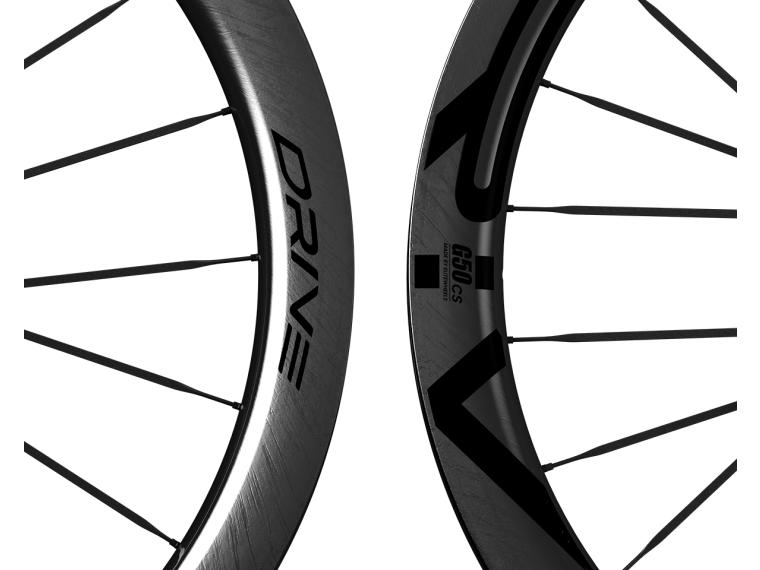

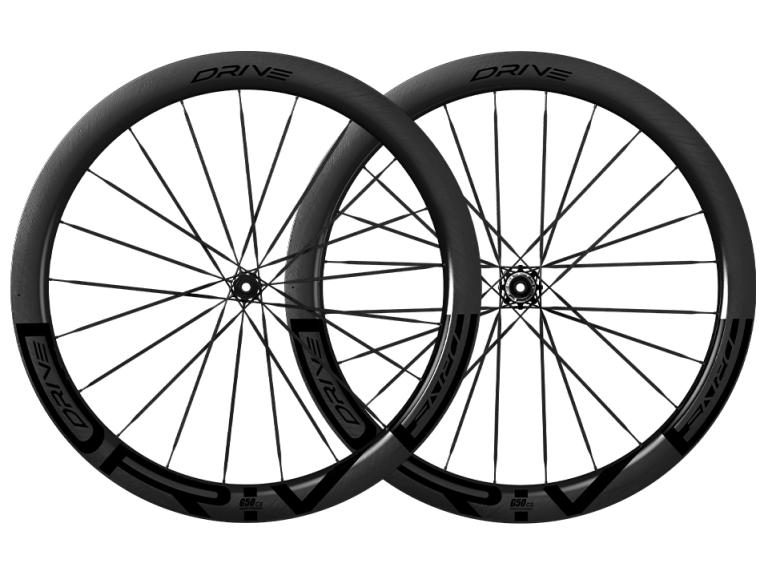

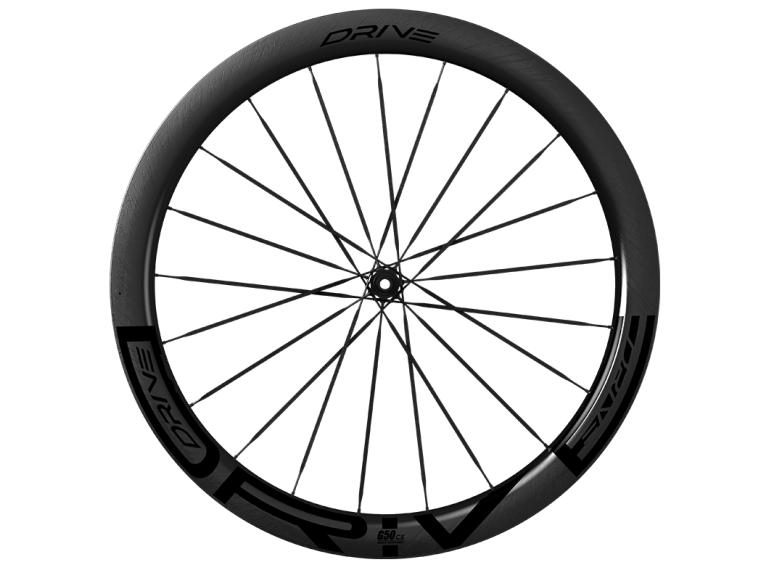

Ruedas Gravel Elitewheels Drive G50 CS

30 mm internal rim width

This extra-wide internal width provides perfect support for wide gravel tyres. This gives the tyre a much neater profile and prevents it from rolling in fast corners. Thus, you can ride safely at lower tyre pressure for maximum grip and vibration damping.

Carbon spokes with a 2:1 lacing pattern

The wheelset uses lightweight, stiff carbon spokes laced in a 2:1 ratio (21 spokes at the front, 24 at the rear) to ensure the spoke tension is optimally balanced on both sides. The result: maximum stiffness when accelerating and reliability on rough terrain.

One-piece titanium 60T ratchet freehub

The rear hub is fitted with a one-piece machined titanium ratchet freehub. Titanium is extremely strong and corrosion-resistant, making it ideal for use in muddy and damp conditions. Thanks to the 60 ratios and an engagement angle of just 6°, the chain engages instantly with every pedal stroke.

Compatible with:

• Gravel and all-road frames with a 12x100 mm thru-axle at the front and a 12x142 mm thru-axle at the rear
• Gravel tyres with an ETRTO width of 40 to 60 mm (compatible with tubeless use and inner tubes)
• Disc brakes with Center Lock disc mounting

Not compatible with:

• Narrow road bike tyres under 40 mm wide; the rims are too wide for these.

In the box:

• Elitewheels Drive G50 CS front wheel
• Elitewheels Drive G50 CS rear wheel
• Rim tape (pre-fitted)
• Tubeless valves (pre-fitted)
• Spare carbon spokes (4x)

Not included / still required

• Tubeless sealant
• Brake rotors and lock rings
• Cassette (and possibly a new chain)
• Gravel tyres (40–60 mm)

What tools do you need?

• Cassette removal tool
• Chain whip or sprocket remover tool
• Center Lock tool (or bracket tool, depending on the lockring)
• Torque wrench

Correct tyre pressure

Make best use of the 30 mm internal rim width by riding with low tyre pressure (often between 1.8 and 2.5 bar, depending on your weight and tyre width). This gives you much better grip and more comfort on gravel.

Cleaning after muddy rides

After a very wet or muddy ride, do not hose down the hubs with a high-pressure washer. Rather, rinse the wheels with a gentle jet of water and dry them with a clean cloth.

Replacing tubeless sealant

Do you ride tubeless? Top up the liquid sealant every 3 to 6 months for optimal puncture protection.
